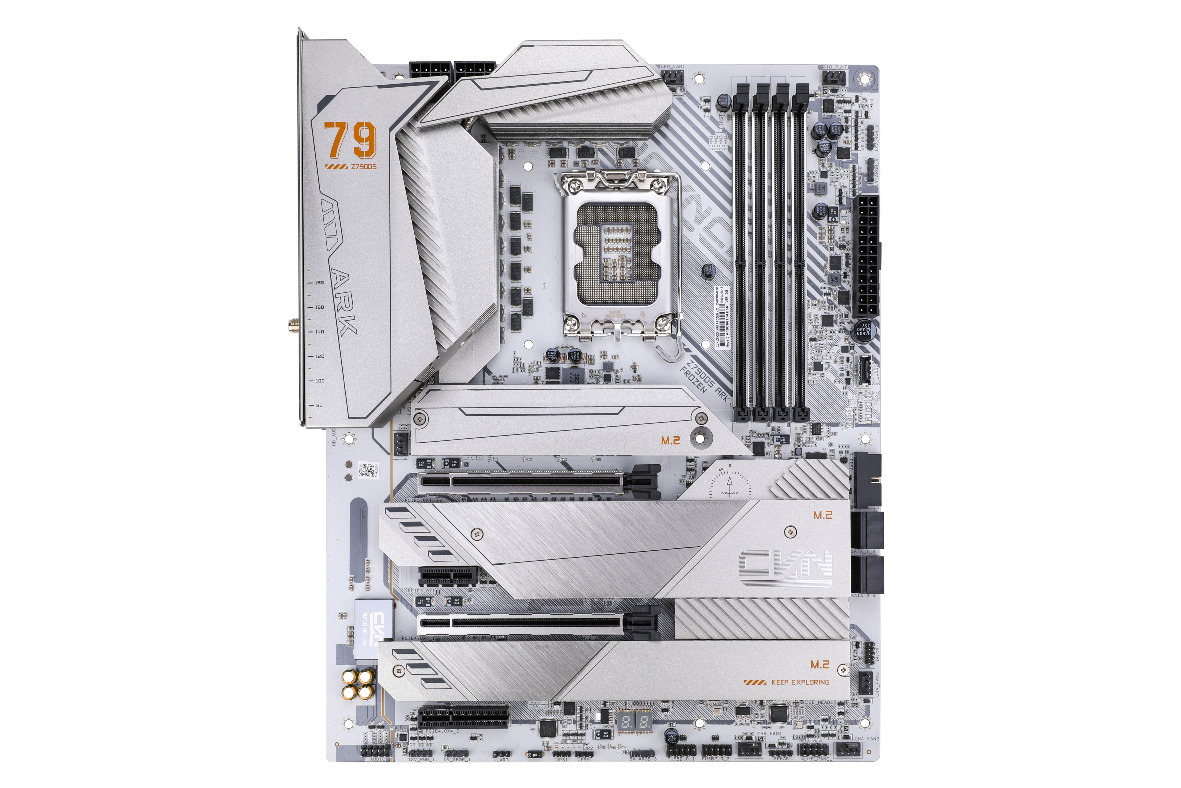

Colorful Technology Company Limited, a leading brand in gaming PC components, gaming laptops, and HiFi audio products, is proud to announce the CVN Z790D5 ARK FROZEN motherboard for the 14th Gen, 13th Gen, and 12th Gen Intel Core processors. The motherboard supports DDR5 memory and comes with four PCIe 4.0 M.2 slots for high-speed NVMe SSDs.

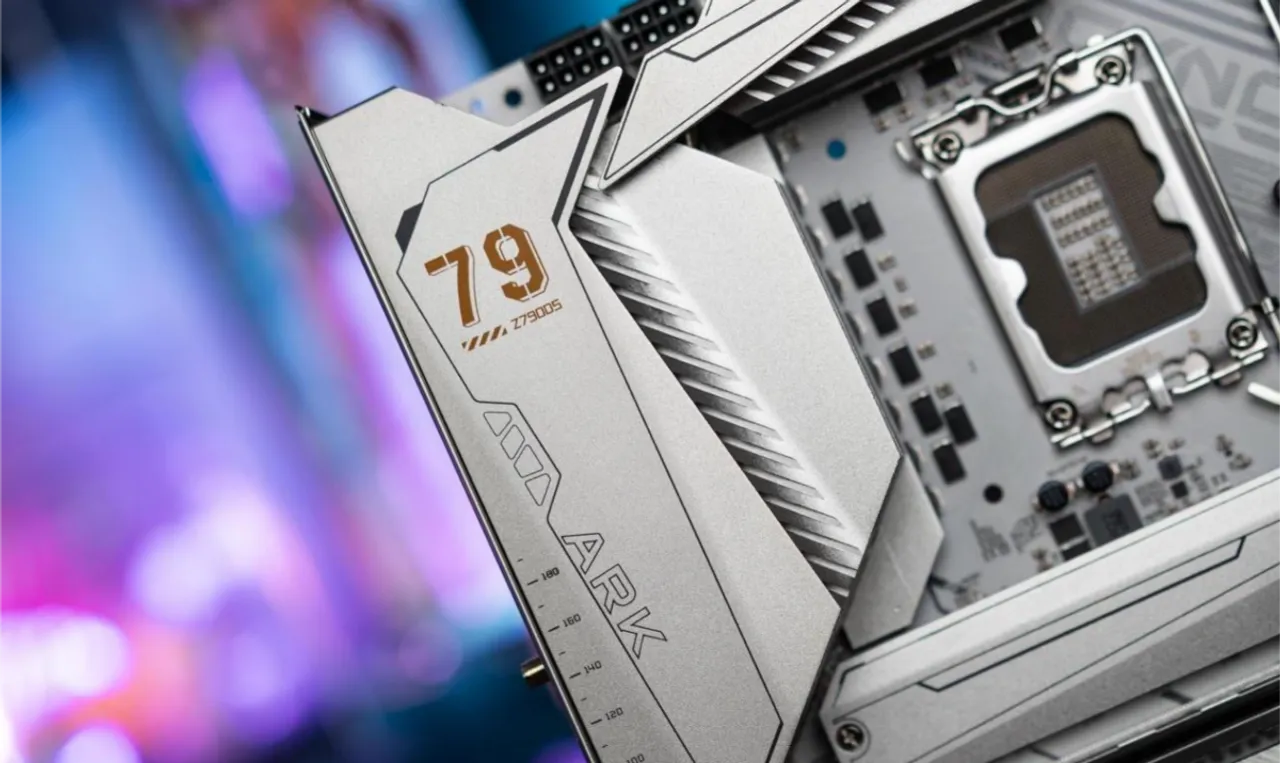

The design of the CVN Z790D5 ARK FROZEN is inspired by the powerful CVN-class battleships. The motherboard features a titanium gray color from the heat sinks to the PCB finish. The motherboard features a 14+1+1 digital power phase design with 90A high-spec DrMOS VRMs with tantalum polymer capacitor to support high-end Intel Core i9 processors with ease.
The CVN Z790D5 ARK FROZEN motherboard comes with a 2.5 GbE ethernet port and Wi-Fi 6E with Bluetooth 5.3. The motherboard has single PCIe 5.0 X16 slot that’s backward compatible with PCIe 4.0 devices such as the latest NVIDIA GeForce RTX 40 Series graphics cards. There’s also a bottom PCIe 4.0x4 slot for add-in devices such as RAID controllers, capture cards, and others.
4X PCIe 4.0 M.2 SSD Slots
Enjoy high-capacity, high-speed storage configurations with four PCIe 4.0 M.2 slots available for PCIe Gen4 M.2 solid-state drives.
Alloy Reinforced Memory Slots
CVN 790D5 ARK FROZEN features alloy reinforced memory slots for aesthetics and durability. Furthermore, the 8-layer PCB and thickened gold-plated contact ensure stable and fast data transmission allowing the motherboard to support higher memory overclocks of up to DDR5-7800MHz. The motherboard supports 48GB memory modules, supporting a total memory capacity of 192GB.
Extensive Connectivity with 30W PD Fast Charging
The CVN 790D5 ARK FROZEN motherboard sports plenty of connectivity options on its rear I/O including 4x USB 2.0, 2x USB 3.2 Gen1, three USB 3.2 Gen2 Type-A ports, and 1x USB 3.2 Gen2x2 type-C port. The front panel I/O header features USB 3.2 Gen2 Type-C that supports 30W PD fast charging.
|
CPU |
Intel® 14th / 13th /12th Generation Core™ Processors |
|
Chipset |
Intel Z790 |
|
Power supply phase |
14+1+1 Power Phase (Dr MOS 90A) |
|
Memory |
4x DDR5 DIMM Socket Dual-Channel*, Support XMP *Single memory supports up to 48GB capacity, total memory capacity supports up to 192GB DDR5-7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/ 6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800MHz Memory Support |
|
Expansion Slot |
1x PCIe 5.0 x16 1x PCIe 4.0 x16 (Support PCIe 4.0 x4) 1x PCIe 4.0 x4 1x PCIe 3.0 x1 |
|
Storage |
Support 4x SATA 6Gb/s Support 4x PCIe 4.0 x4 M.2 SSD* *M.2 1, M.2 2, M.2 3 SSD does not support SATA M.2, M.2 4 SSD supports SATA M.2 |
|
Internal Connectors |
1x 24-pin ATX Power connector 2x 8-pin CPU Power connector 1x Front USB 3.2 Gen 2 Type-C (PD3.0 @30W) 2x Front USB 3.2 Gen 1 Type-A (one pin) 4x Front USB 2.0 (two pin) |
|
I/O Ports |
4x USB2.0; 2x USB 3.2 Gen 1 Type-A; 3x USB 3.2 Gen 2 Type-A; 1x USB 3.2 Gen 2x2 Type-C 1x HDMI port; 1x DP port; |
|
LAN |
Realtek 2.5G + Wi-Fi 6E, Support Bluetooth 5.3 |
|
Audio |
7.1-Channel High-Definition audio CODEC |
|
Dimensions |
305mm*244mm, ATX |
Pricing and Availability
For more information on availability and pricing, please contact your local COLORFUL Technology representative.
